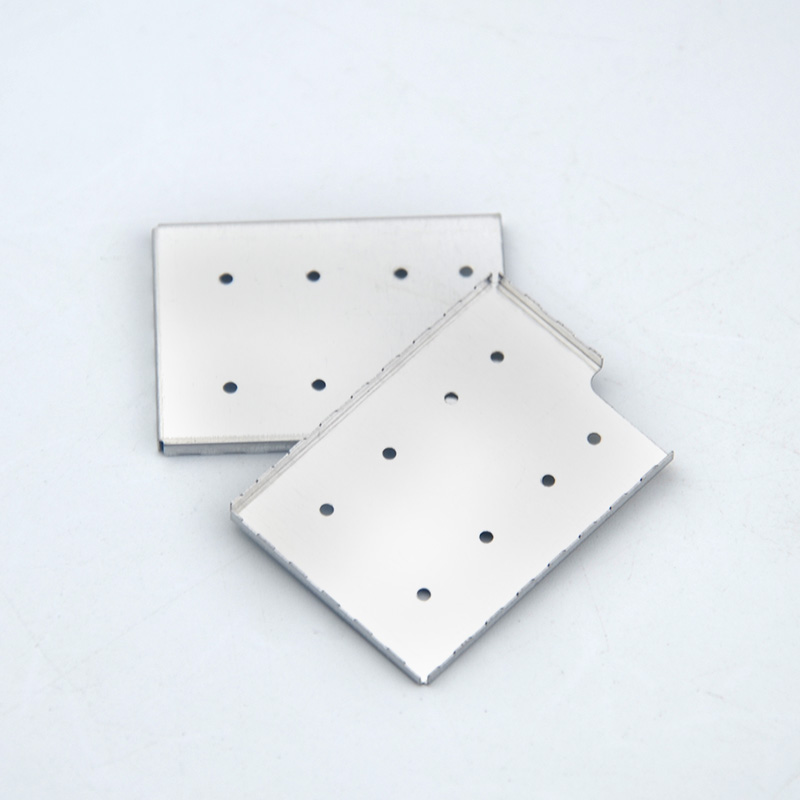

Walkie-talkie circuit board shielding cover

Material：Stainless steel, Tinplate, custom

Size： As per requirement.

Test：ROHS, SGS

Sample day：3 wordays

Open mold： 7 wordays

Mold type：Continuous mode

Tolerance：±0.05mm

Cleaning method：Ultrasonic cleaning

Packing：Blister Tray, Tape and Reel

Advantage：Lightweight and accurate size

Application：Mobile phones, computers, GPS, watches, digital products.

Certification： ISO9001 & IATF16949

Tel:13669846948 (Mr.Liu)

Product Details

Focus on customized production of shielding covers
Product Name Metal stamping shield case
Material Spring steel, Stainless steel, Brass, Bronze, Phosphor Bronze, etc.
Finish Nickel plating, Sn plating, Tin plating, Zinc plating, Chrome, Heat Treatment, Plating, Degreasing, Electrophoresis, etc.
Size As per requirement.
Thickness 0.3 - 1.2mm
Tolerance +/-0.001
Certification ISO9001:2015 / IATF16949
Application Industrial, Furniture, Automobile, Motorcycle, Household Electrical Appliances, Computer, etc.
Approach Metal stamping, Cutting / Punching / Bending / Welding / Deep Drawing;
Precision Shield Case.jpg

The material for customizing shielding covers is usually metal, such as copper, aluminum, steel, or stainless steel.

The shielding cover is an alloy metal cover that is a crucial component for reducing display radiation. When applied in MID or VR products, it can effectively reduce mutual interference between modules

Use of shielding cover

Customization of shielding covers requires comprehensive consideration of technical requirements such as material selection, structural design, manufacturing processes, and electromagnetic compatibility

Material selection

Metal material: commonly used 0.2mm stainless steel (shielding cover) combined with phosphor bronze (shielding bracket), balancing conductivity (phosphor bronze conductivity ≤ 1 Ω· cm) and welding performance; Zinc tin nickel alloy (ZSNH) is suitable for scenarios that require high welding strength. ‌

Non metallic materials: Conductive rubber sealing strip (body resistivity ≤ 1 Ω· cm) is used for joint sealing, and nano silver coating (0.1 μ m thick) can improve high-frequency absorption by 15dB but at a higher cost. ‌

Safety distance

The distance between the cover and the edge of the PCB should be ≥ 1mm to prevent assembly collision; The critical signal path area should avoid the opening design. ‌

Design of heat dissipation holes

Heat dissipation holes with a diameter of 1-1.5mm and a spacing of approximately 5mm balance heat dissipation and electromagnetic sealing; The waveguide ventilation aperture should be ≤ λ/4 (e.g. 2.4GHz corresponds to ≤ 3cm). ‌

Grounding design

Adopting the "2-1-2-1mm" Great Wall foot welding process (contact 2mm, suspended tin climbing 1mm) to ensure grounding reliability and reduce residual radiation intensity by 10-15dB

The prototype can usually be completed within 24-48 hours.

Quick prototyping services are provided to ensure suitability or functionality, allowing for low-cost design modifications and identifying improvements in manufacturability before achieving mass production.

If you have any questions, please feel free to contact us at any time

Our staff will be happy to answer any questions you may have

A one-stop service from precision mold manufacturing to comprehensive solutions for precision metal stamping products and precision structural components.

Dongguan Lianxinda Hardware Electronics Co., Ltd

Phone: 13669846948 (Mr. Liu)

Email: Liu@lxdmetal.com

Product Name	Metal stamping shield case
Material	Spring steel, Stainless steel, Brass, Bronze, Phosphor Bronze, etc.
Finish	Nickel plating, Sn plating, Tin plating, Zinc plating, Chrome, Heat Treatment, Plating, Degreasing, Electrophoresis, etc.
Size	As per requirement.
Thickness	0.3 - 1.2mm
Tolerance	+/-0.001
Certification	ISO9001:2015 / IATF16949
Application	Industrial, Furniture, Automobile, Motorcycle, Household Electrical Appliances, Computer, etc.
Approach	Metal stamping, Cutting / Punching / Bending / Welding / Deep Drawing;
